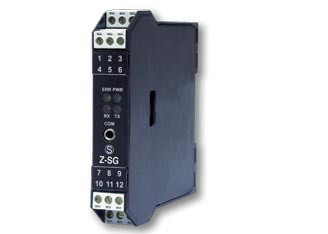

SENECA Z-SG轉換器
SENECA Z-SG轉換器產品資料：
意大利SENECA Z-SG轉換器產品參數：
| Order code : | Z-SG | |
| Description: | Strain gauge to DC isolator / converter | |
| Input: | 4 or 6-wire bridge connections, lowest value 87 Ω suitable for 1..4 loaadcells (350 Ω) or 1..8 loadcells (1.000 Ω) | |
| Output: | Nr 1 channel current 0..20, 4..20 mA; voltage 0..10, 0..5 Vdc | |
| Digital input / output: | Selectable for tare calibration or threshold weight | |
| Sensitivity: | From 1 to 64 mV/V | |
| Interface: | RS485 serial communication with ModBUS RTU protocol | |
| Programmable functions: | full scale, exceed threshold, stable weight | |
| Galvanic isolation: | 1,5 kV | |
| Power supply: | 10..40 Vdc, 19..28 Vac | |
| Accessories: | SG-EQ4 (4 load cells junction box) |
意大利SENECA Z-SG轉換器連接方式：
SENECA Z-SG轉換器，直流信號隔離轉換器，6路輸入/輸出，電源/輸入/輸出三隔離，Modbus-
RTU serial protocol協議管理，歡迎來電咨詢。
